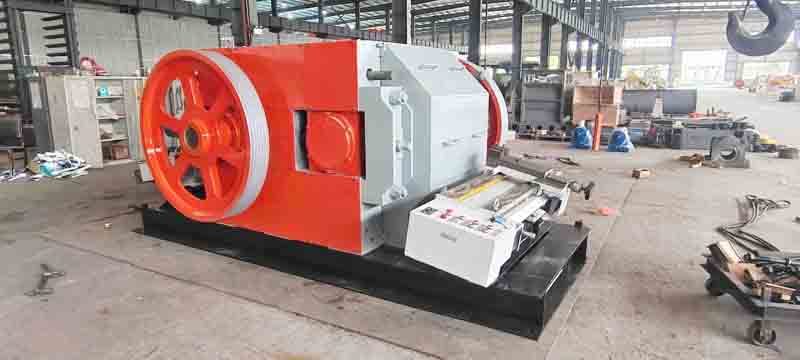

1. New 20 to 100 tons per hour Grey Refine roller crusher roller mill for raw material crushing clay brick making
or bentonite making, custom building
1. It is using for clay crushing with water content less than 25%;
2. Input diameter of clay below 20 mm and output diameter can be 1-1.5mm;
3. Roller mounting is supported by two hydraulic cylinder brackets;
4. The side frame is a full welded structure which is processed by machine tools to ensure precision and anti-resistance;
5. Two lathes in the front and back can automatically grinds and repairs the rollers.
2. Full structure for refine roller crusher is solid steel structure with hydraulic systems driven
| Model: | 800x600 | 1000x800 | 1200x1000 | 1400x1200 |
| 1. No.: | IBS072-4703 | IBS072-4705 | IBS072-4707 | IBS072-4709 |
| 2. Capacity m3 per hour | 23-37 | 33-42 | 40-55 | 50-70 |
| 3. Power | 30+37 | 55+75 | 110+75 | 160+90+5.5 |
| 4. Size(mm) | 5000x1400x1430 | 6230x2010x1635 | 6800x4460x2860 | 8680x7300x2260 |
| 5. Weight(kg) | 5700 | 14330 | 22400 | 34000 |
3. Rollers for the refine roller crusher
1. Hardness for for the surface skin for the roller is 60.7 HRC, which is harder than the standard.
2. Suppliers of rollers are same manufacturer with Verdes, Handle and other European companies;
3. The roller and the hub are separated structure and connected by a wedge key, which is easier to do
the repair and replace the roller；
4. The thickness of the roller skin is 135mm and is designer layer by layer, which 1 layer is wore, the lathe
can repair easily, In the designing, the layer is wear resistance, high strength and easy cutting for repairing;
4. Spherical rolling bearings for refine roller crusher
5. Lathe for roller repairing
6. Motor installed on the refine roller crusher is famous brand
Any interested pls advise
